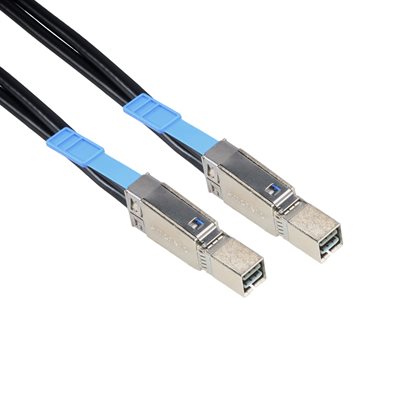

Amphenol CS-SASMINIHD2-005 5m (16.4') External 4x HD Mini-SAS Cable - 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS HD (SFF-8644) Passive Copper Cable [28 AWG] - 12G SAS 3.0 / iPass+™ HD
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Amphenol CS-SASMINIHD2-005 5m (16.4') External 4x HD Mini-SAS Cable - 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS HD (SFF-8644) Passive Copper Cable [28 AWG] - 12G SAS 3.0 / iPass+™ HD

Product: CS-SASMINIHD2-005

Amphenol 5m (16.4 ft) External 4x HD Mini-SAS to HD Mini-SAS (SFF-8644 to SFF-8644) Cables are thoroughly tested at 12.0 Gbps wire lane speeds prior to shipment; ensuring 100% compatibility with SAS 2.1 and new SAS 3.0 specifications. Amphenol's exclusive Spectra-Strip SKEWCLEAR triple shielded parallel-pair wire guarantees sustained data-rates up to 12.0 Gbps per lane, reduced signal loss and improved cross-talk performance over competing wire technologies. This 4x HD Mini-SAS cable features universal keyed SFF-8644 pull to release lanyard connectors that are fully intermateabie with ANY manufacturer's 4x iPass+™ HD (Mini-SAS HD) receptacle ports. Due to Amphenol's technological lead on high-speed over copper, our HD Mini-SAS cable assemblies are thinner (i.e. 28 AWG) and more flexible than competing HD Mini-SAS products -- providing convenient routing options and improved airflow while exceeding the performance parameters of a thicker grade cable (i.e. 26 AWG). 5m (16.4') length. Also available in 1m (3.3') and 2m (6.6') lengths.
1-50 $229.19 /EA
51+ $217.73 /EA
    • EA
  • Quantity Available: 5
  • Availability: In stock
  • External 4x Mini-SAS HD Cable from Amphenol High Speed Interconnects
  • Guaranteed SAS-III drive performance at 6.0 Gbps & 12.0 Gbps data rates
  • SFF-8644 (4x HD Mini-SAS) to SFF-8644 (4x HD Mini-SAS) connectors
  • Universal key 4x HD Mini-SAS connectors feature pull-to-release lanyard
  • 28 AWG Twinaxial SKEWCLEAR 8-pair high-bandwidth low-skew wire
  • Ideal external cabling solution for connecting two HD Mini-SAS devices
  • Zinc Die-Cast connector housings for excellent durability & EMI resistance
  • Precision matched impedance design (100 Ohm +/- 15%)
  • Mating Durability: 250 cycles minimum / 500 cycles nominal
  • Maximum Voltage Rating: 30V AC
  • Maximum Current Rating: 500 mA AC
  • Temperature Handling: Tested to 105°C for 72 hours
  • Insertion Loss: No more than 6.0 dB max at 4.5 GHz
  • Fully compliant to the latest SAS 2.1 AND SAS 3.0 interface specifications
  • Subject to Serial Attached SCSI 12 Gbps test certification before shipment
  • Components are UL listed
  • Also available in 1m (3.3 ft) and 2m (6.6 ft) lengths
  • RoHS compliant cable design meets environmental standards
