![Amphenol SF-QXP85B402D-000 QSFP28 (100G) 100GBASE-SR Transceiver (Short Range 100m) 850nm Multi-Mode Optical Module (MTP / MPO Connector) by Amphenol XGIGA [QXP-85B4-02D]](https://cablesondemand-2.azureedge.net/img/product/SF-QXP85B402D-000_1-B.jpg?fv=32294E0161400946C2CD849FC3D2BE64 "Amphenol SF-QXP85B402D-000 QSFP28 (100G) 100GBASE-SR Transceiver (Short Range 100m) 850nm Multi-Mode Optical Module (MTP / MPO Connector) by Amphenol XGIGA [QXP-85B4-02D]")

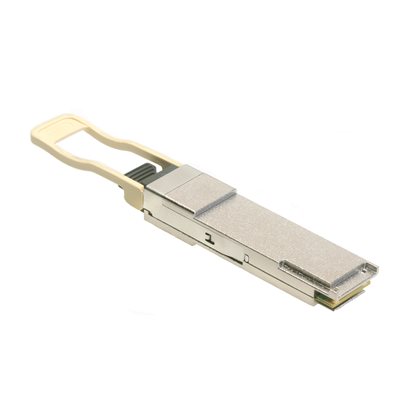

Amphenol SF-QXP85B402D-000 QSFP28 (100G) 100GBASE-SR Transceiver (Short Range 100m) 850nm Multi-Mode Optical Module (MTP / MPO Connector) by Amphenol XGIGA [QXP-85B4-02D]
Product: SF-QXP85B402D-000
UPC: 812834028637
Amphenol XGIGA's 100G QSFP28 100m (330ft) Short Range (100GBASE-SR4) Multimode Optical Transceiver Module with Integrated MTP/MPO Connector (OEM P/N: QXP-85B4-02D) seamlessly integrates the transmit and receive paths of four 28.05 Gbps (max) rated data channels via a universal SFF-8636 MSA compliant QSFP28 pluggable interface for compatibility with 100-Gigabit Ethernet capable QSFP28 switch, server and NIC ports.
The optical transmitter portion of the 100G QSFP28-SR transceiver incorporates a 4-channel VCSEL (VerticalCavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, diagnostic monitors,control and bias blocks. The transceiver is fed using its integrated standard 12-lane MTP/MPO connectors, which can accommodate either 12-lane OM3/OM4 multimode fiber, or 8 lane fiber using only 8 of the 12 MTP/MPO connector pins.
The optical receiver portion of the transceiver incorporates a 4-channel PIN photodiode array, a4-channel TIA array, a 4 channel output buffer, diagnostic monitors, and control and bias blocks.Diagnostic monitors for optical input power are implemented and results are available through the TWSinterface. The ultra-efficient VCSEL laser drivers operate at a median multimode optical wavelength of 850nm, as per industry standards, supporting 70m (OM3) and 100m (OM4) link lengths.
These exceptional 100G QSFP28-SR optical transceiver modules are precision-built in Amphenol's premiere optics lab in Taiwan and strenuously tested for long-term reliability and exceptional performance. Featuring a hot-pluggable electrical interface, exceptional power consumption (< 2.0W) and a 2-wire serial interface. Form factor, optical/electrical connection and digital diagnostic interface is fully-compliant to QSFP28 Multi-Source Agreement (MSA) and IEEE 802.3ba standards.
- Quantity Available: 16
- Availability: In stock
- 100GBASE-SR QSFP28 Multimode Optical Transceiver Module by Amphenol XGIGA
- Open-Source / Generic QSFP28 Spec Certified Coding Algorithm for Maximum Compatibility
- 850nm VCSEL Supports 100GbE 100-Gigabit Ethernet up to 300m with OM3/OM4 Fiber
- QSFP28 multi-pin board-as-connector interface with EMI cage (SFF-8436)
- Featuring an integrated MTP/MPO fiber optic connector on rear of module
- Compatible with all QSFP+/QSFP28 ports as well as OM1/OM2/OM3/OM4 fiber
- Optimized for high speed differential signal applications
- Improved Pluggable Form Factor (IPF) for enhanced EMI/RFI performance
- Supports data rates up to 112.0 Gigabits per second
- Compliant with IEEE802.3ae 100GBASE-SW/SR (100-Gigabit Ethernet)
- Full support for 1x, 2x, 4x, 8x and 16x fibre channel applications
- 300m (984ft) max link distance with OM3/OM4 Multimode MMF (Aqua/Gray) fiber
- High-reliability with low power consumption (2W maximum)
- Easy push-to-release design for quick module removal
- Fully QSFP+/QSFP28 MSA compliant as per SFF-8436 standards
- Perfect solution for Storage Area Networks and switched fabric I/O
- Each QSFP28 Optical Module is warrantied against defects for 3 years
- OEM-certified design will not void your switch warranty
- RoHS compliant
