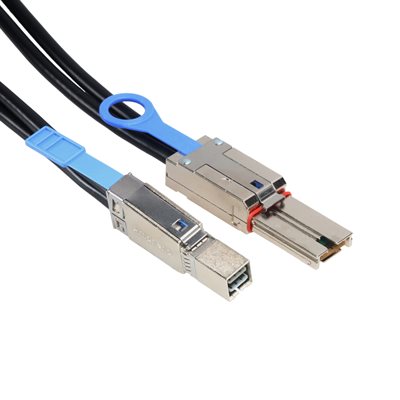

Amphenol CS-SASMINTOHD-003 3m (9.8') External 4x Mini-SAS to HD Mini-SAS Cable - 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS 26-pin (SFF-8088) Passive Copper Cable [28 AWG] - 6G SAS 2.1 / iPass+™ HD
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Amphenol CS-SASMINTOHD-003 3m (9.8') External 4x Mini-SAS to HD Mini-SAS Cable - 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS 26-pin (SFF-8088) Passive Copper Cable [28 AWG] - 6G SAS 2.1 / iPass+™ HD

Product: CS-SASMINTOHD-003

UPC: 812834024073

Amphenol 3m (9.8ft) External 4x Mini-SAS (SFF-8088) to HD Mini-SAS (SFF-8644) Cables function as a "Hybrid Cable"; thus permitting the installer to link up legacy Mini-SAS devices with the latest generation of Mini-SAS HD (High Density) hardware. Amphenol's exclusive Spectra-Strip SKEWCLEAR triple shielded parallel-pair wire guarantees sustained data-rates up to 6.0 Gbps per lane, reduced signal loss and improved cross-talk performance over competing wire technologies. This 4x HD Mini-SAS to Mini-SAS cable features a universal keyed SFF-8644 pull to release lanyard connector on one end and a universal keyed SFF-8088 pull-to-release lanyard connector on the other, each of which are fully intermateabie with ANY manufacturer's 4x iPass+™ HD (Mini-SAS HD) and 26-pin Mini-SAS receptacle ports. Due to Amphenol's technological lead on high-speed over copper, our HD Mini-SAS cable assemblies are thinner (i.e. 28 AWG) and more flexible than competing HD Mini-SAS products -- providing convenient routing options and improved airflow while exceeding the performance parameters of a thicker grade cable (i.e. 28 AWG). 3m (9.8') length. Also available in 1m (3.3') and 2m (6.6') lengths.
(Based on 1 vote(s))
Add First Review
1-50 $112.78 /EA
51+ $107.14 /EA
    • EA
  • Quantity Available: 87
  • Availability: In stock
  • External 4x Mini-SAS HD to Mini-SAS hybrid cable assembly - 3m (9.8')
  • Guaranteed SAS 2.1 drive performance at 6.0 Gbps data rates per lane
  • SFF-8644 (4x HD Mini-SAS) to SFF-8088 (4x Mini-SAS) connectors
  • All connectors feature universal keying with pull-to-release lanyards
  • 28 AWG Twinaxial SKEWCLEAR 8-pair high-bandwidth low-skew wire
  • External cabling solution for connecting Mini-SAS to HD Mini-SAS devices
  • Zinc Die-Cast connector housings for excellent durability & EMI resistance
  • Precision matched impedance design (100 Ohm +/- 15%)
  • Mating Durability: 250 cycles minimum / 500 cycles nominal
  • Maximum Voltage Rating: 30V AC
  • Maximum Current Rating: 500 mA AC
  • Temperature Handling: Tested to 105°C for 72 hours
  • Insertion Loss: No more than 6.0 dB max at 4.5 GHz
  • Fully compliant to the latest SAS 2.1 AND SAS 3.0 interface specifications
  • Subject to Serial Attached SCSI 6.0 Gbps test certification before shipment
  • Components are UL listed
  • Also available in 1m (3.3') and 2m (6.6') lengths
  • RoHS compliant cable design meets environmental standards
Average Rating:
(Based on 1 vote(s))
Review this product:
Add First Review

You May Also Be Interested In

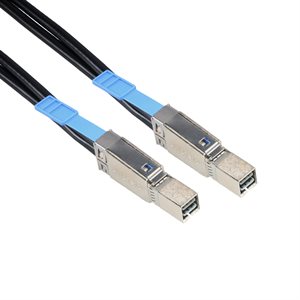

Amphenol CS-SASMINIHD2-003 3m (9.8') External 4x HD Mini-SAS Cable - 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS HD (SFF-8644) Passive Copper Cable [28 AWG] - 12G SAS 3.0 / iPass+™ HD
1-50 $139.67
51+ $132.69
  • EA
  • Quantity Available: 91
  • Availability: In stock
Amphenol CS-SASMINIHD2-004 4m (13.1') External 4x HD Mini-SAS Cable - 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS HD (SFF-8644) Passive Copper Cable [28 AWG] - 12G SAS 3.0 / iPass+™ HD
1-50 $166.62
51+ $158.29
  • EA
  • Quantity Available: 3
  • Availability: In stock
Amphenol CS-NMCCEJ0002-2M 2m (6.6') 24G External 8x HD Mini-SAS 4.0 Cable - 8x Mini-SAS HD (SFF-8644) to 8x Mini-SAS HD (SFF-8644) Passive Copper Cable [28 AWG] - 24G SAS 4.0 / iPass+™ zHD
1-50 $142.52
51+ $135.39
  • EA
  • Quantity Available: 5
  • Availability: In stock
Amphenol CS-SASMINIHD2-001 1m (3.3') External 4x HD Mini-SAS Cable - 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS HD (SFF-8644) Passive Copper Cable [30 AWG] - 12G SAS 3.0 / iPass+™ HD
1-50 $87.56
51+ $83.18
  • EA
  • Quantity Available: 26
  • Availability: In stock
Amphenol CS-SASMINIHD2-002 2m (6.6') External 4x HD Mini-SAS Cable - 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS HD (SFF-8644) Passive Copper Cable [28 AWG] - 12G SAS 3.0 / iPass+™ HD
1-50 $117.91
51+ $112.01
  • EA
  • Quantity Available: 39
  • Availability: In stock
Amphenol CS-SASMINIHD2-005 5m (16.4') External 4x HD Mini-SAS Cable - 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS HD (SFF-8644) Passive Copper Cable [28 AWG] - 12G SAS 3.0 / iPass+™ HD
1-50 $229.19
51+ $217.73
  • EA
  • Quantity Available: 5
  • Availability: In stock

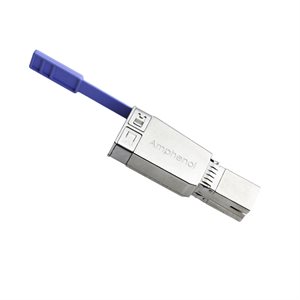

Amphenol CS-NBC0DSASLB-3DB 4x External HD Mini-SAS Loopback Adapter Module for SFF-8644 Mini-SAS HD Port Testing - 3dB Attenuation & 0W Power Consumption [Copper+Optical Ready]
