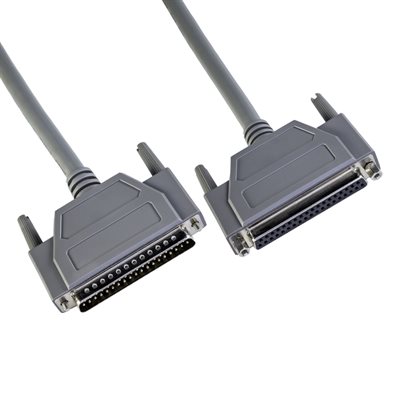

Amphenol CS-DSDMDB37MF-010 37-Pin (DB37) Deluxe D-Sub Cable - Copper Shielded - Male / Female 10ft
Product: CS-DSDMDB37MF-010
UPC: 812834025568
Buy 10ft Amphenol CS-DSDMDB37MF-010 Cables Direct from the Factory at Cables on Demand. 37-pin (DB37) Copper Shielded High Density Male/Female D-Sub Cables by Amphenol provide exceptional performance in commercial, industrial or enterprise applications where longevity and repeated disconnects are required. Our fully assembled Deluxe HD D-Sub Cable integrates copper tape + aluminum mylar shielded 26 AWG data-grade wire with pre-terminated DB37 male and female d-sub connectors. Perfect for RS232 serial data, prototype, control and low-voltage applications using the 37-pin DB37 interface. Note: Other cable lengths from this same part number series, if available, will be also be displayed with their corresponding list prices. OEM-customized length, color and label options available by request.
- 37-Pin (DB37) Deluxe Fully Populated D-Sub Cable Assembly by Amphenol
- Connectors: DB37 male to DB37 female D-Sub connectors pre-installed
- Cable: 26 AWG UL listed with copper tape + aluminum mylar shields
- Straight-through wiring (i.e. pin 1 to pin 1) design per industry standards
- Perfect for low-voltage signals & DCE/DTE RS232 serial communications
- 100% EMI/RFI shielded design combines aluminum mylar and copper tape
- Fully populated with Gold-plated contacts for superior signal continuity
- Rugged UL94V-0 flame-resistant PVC jacket and overmold for strain relief
- 300V voltage handling capacity at temperatures up to 80 degrees Celsius
- Available in multiple cable lengths to meet your specific requirements
- Cables can be easily cut in half and custom terminated for prototyping
- RoHS compliant
