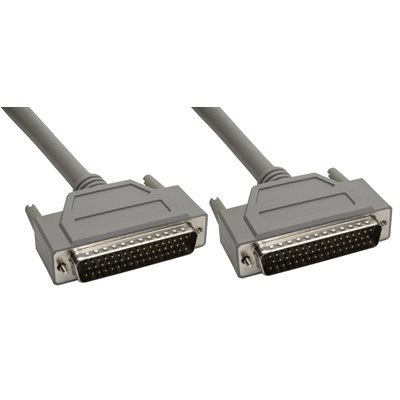

Amphenol CS-DSDMDB50MM-002.5 50-Pin (DB50) Deluxe D-Sub Cable - Copper Shielded - Male / Male 2.5ft
Product: CS-DSDMDB50MM-002.5
UPC Code: 812834025438
Buy 2.5ft Amphenol CS-DSDMDB50MM-002.5 Cables Direct from the Factory at Cables on Demand. 50-pin (DB50) Copper Shielded High Density Male/Male D-Sub Cables by Amphenol provide exceptional performance in commercial, industrial or enterprise applications where longevity and repeated disconnects are required. Our fully assembled Deluxe HD D-Sub Cable integrates copper tape + aluminum mylar shielded 26 AWG data-grade wire with pre-terminated DB50 male d-sub connectors. Perfect for RS232 serial data, prototype, control and low-voltage applications using the 50-pin DB50 interface. Note: Other cable lengths from this same part number series, if available, will be also be displayed with their corresponding list prices. OEM-customized length, color and label options available by request.
- The Summer of Savings Continues at Cables on Demand Thru 8/31: Get $80.00 OFF Your First Online Order Over $350.00 Automatically at Checkout.
- 50-Pin (DB50) Deluxe Fully Populated D-Sub Cable Assembly by Amphenol
- Connectors: DB50 male to DB50 male D-Sub connectors pre-installed
- Cable: 26 AWG UL listed with copper tape + aluminum mylar shields
- Straight-through wiring (i.e. pin 1 to pin 1) design per industry standards
- Perfect for low-voltage signals & DCE/DTE RS232 serial communications
- 100% EMI/RFI shielded design combines aluminum mylar and copper tape
- Fully populated with Gold-plated contacts for superior signal continuity
- Rugged UL94V-0 flame-resistant PVC jacket and overmold for strain relief
- 300V voltage handling capacity at temperatures up to 80 degrees Celsius
- Available in multiple cable lengths to meet your specific requirements
- Cables can be easily cut in half and custom terminated for prototyping
- RoHS compliant
