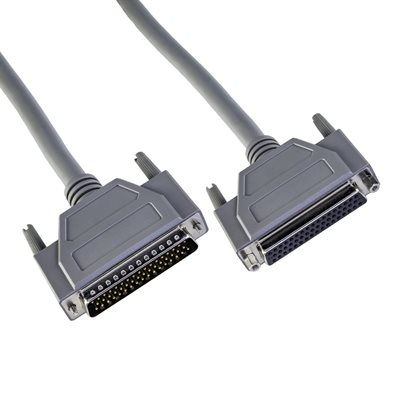

Amphenol CS-DSDMDB50MF-005 50-Pin (DB50) Deluxe D-Sub Cable - Copper Shielded - Male / Female 5ft

Product: CS-DSDMDB50MF-005

UPC: 812834025483

Buy 5ft Amphenol CS-DSDMDB50MF-005 Cables Direct from the Factory at Cables on Demand. 50-pin (DB50) Copper Shielded High Density Male/Female D-Sub Cables by Amphenol provide exceptional performance in commercial, industrial or enterprise applications where longevity and repeated disconnects are required. Our fully assembled Deluxe HD D-Sub Cable integrates copper tape + aluminum mylar shielded 26 AWG data-grade wire with pre-terminated DB50 male and female d-sub connectors. Perfect for RS232 serial data, prototype, control and low-voltage applications using the 50-pin DB50 interface. Note: Other cable lengths from this same part number series, if available, will be also be displayed with their corresponding list prices. OEM-customized length, color and label options available by request.
Part Number Color Length Qty Available / Availability Qty Unit Price
CS-DSDMDB50MF-002.5 Gray 2.5ft 189 / In stock EA
1-50 $40.15 /EA
51+ $38.14 /EA
CS-DSDMDB50MF-005 Gray 5ft 447 / In stock EA
1-50 $43.62 /EA
51+ $41.44 /EA
CS-DSDMDB50MF-010 Gray 10ft 178 / In stock EA
1-50 $51.23 /EA
51+ $48.67 /EA
CS-DSDMDB50MF-015 Gray 15ft 100 / In stock EA
1-50 $63.01 /EA
51+ $59.86 /EA
CS-DSDMDB50MF-025 Gray 25ft 85 / In stock EA
1-50 $76.17 /EA
51+ $72.36 /EA
CS-DSDMDB50MF-050 Gray 50ft 0 / Out of stock EA
1-50 $116.33 /EA
51+ $110.51 /EA
  • Current Promotion -- Enjoy $100.00 OFF Online Orders Over $500.00 Automatically at Checkout Thru 5/16
  • 50-Pin (DB50) Deluxe Fully Populated D-Sub Cable Assembly by Amphenol
  • Connectors: DB50 male to DB50 female D-Sub connectors pre-installed
  • Cable: 26 AWG UL listed with copper tape + aluminum mylar shields
  • Straight-through wiring (i.e. pin 1 to pin 1) design per industry standards
  • Perfect for low-voltage signals & DCE/DTE RS232 serial communications
  • 100% EMI/RFI shielded design combines aluminum mylar and copper tape
  • Fully populated with Gold-plated contacts for superior signal continuity
  • Rugged UL94V-0 flame-resistant PVC jacket and overmold for strain relief
  • 300V voltage handling capacity at temperatures up to 80 degrees Celsius
  • Available in multiple cable lengths to meet your specific requirements
  • Cables can be easily cut in half and custom terminated for prototyping
  • RoHS compliant
