Amphenol CO-316SMAX200-002 RG316 High Temperature Teflon Coaxial Cable - SMA Male to SMA Male 2ft
Product: CO-316SMAX200-002
UPC: 812834026442
Buy 2ft Amphenol CO-316SMAX200-002 Cables Direct from the Factory at Cables on Demand. RG316/U coaxial cables by Amphenol feature precision-terminated SMA Male connectors for a reliable low-loss interface with your RF equipment. TFE (Teflon) insulated design with silver coated copper braids support temperatures in excess of 200°C. Available in multiple lengths up to 10’. Perfect for demanding high-temperature applications (avionics/aerospace/industrial) up to 3.0 GHz. Note: Other cable lengths from this same part number series, if available, will be also be displayed with their corresponding list prices. OEM-customized length, color and label options available by request.

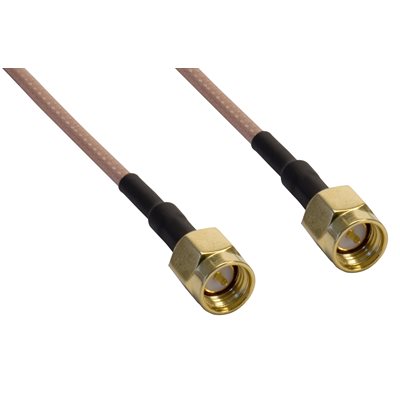

- Assembled Amphenol RG316 SMA Male to SMA Male Coaxial Cable
- Military-Grade RG316/U 50 Ohm Coax with 96% Silver Braid Coverage
- Featuring Impedance-Matched Amphenol SMA Male Connectors
- Gold-plated SMA connectors & contacts for superior signal transmission
- Stranded silver-plated copper steel center conductor increases flexibility
- SMA male to SMA male connector configuration
- Available in lengths ranging from 1 to 10 feet
- Insulation: PTFE Teflon for superior temperature performance to 200°C
- Insulation Diameter: 1.52 mm
- Jacket Type: FEP (Fluorinated Ethylene-Propylene) rated to 200°C
- Jacket Diameter: 2.54mm (0.1 inches)
- Loss @ 100 MHz: 0.262 dB/m
- Loss @ 400 MHz: 0.531 dB/m
- Excellent power handling characteristics: 270 watts @ 1.0 GHz
- Recommended for high temperature applications up to 3.0 GHz frequency
- RoHS compliant and UL Listed
