- Amphenol CO-174BNCX200-015 BNC Male to BNC Male (RG174) 50 Ohm Coaxial Cable Assembly 15ft

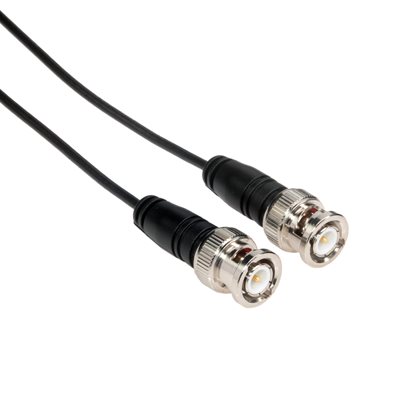

Amphenol CO-174BNCX200-015 BNC Male to BNC Male (RG174) 50 Ohm Coaxial Cable Assembly 15ft
Product: CO-174BNCX200-015
UPC: 812834026879
Buy 15ft Amphenol CO-174BNCX200-015 Cables Direct from the Factory at Cables on Demand. RG174 BNC Coaxial Cable Assemblies by Amphenol combine 50 Ohm RG174 micro coax cable with pre-terminated BNC Male connectors for a flexible low-profile interface with your RF equipment. Performance beyond 6 GHz is guaranteed with our 90% tinned copper braid shielded MIL-C-17 type RG174/U coax. This flexible small-diameter coax (.110") is ideal for low-power mobile radio, Wi-Fi, test bench, intra-equipment, and portable applications where space is limited. Each RG174 coax jumper includes overmolded Nickel-plated Brass BNC connectors pre-installed by the world leader in RF interconnects: Amphenol. Note: Other cable lengths from this same part number series, if available, will be also be displayed with their corresponding list prices. OEM-customized length, color and label options available by request.
- Fully assembled Amphenol RG174 BNC Male to BNC Male Coaxial Cable
- Military-grade RG174/U 50 Ohm micro coax with 90% braid coverage
- Impedance-matched Amphenol brand BNC connectors pre-installed
- Small diameter (.110") cable design offers superior installation flexibility
- Stranded copper-covered steel center conductor supports up to 350W
- Tinned copper braid shielding for enhanced isolation and EMI resistance
- Nickel-plated Brass connector body with Gold-plated center pin contact
- Non-contaminating black PVC cable jacket and molded strain relief system
- Ideal for low-power RF, HAM, broadcast, data, test & signal applications
- Stocked in a variety of common lengths to meet application requirements
- Cable can be cut & direct soldered to amplifiers, combiners & antennas
- Insulation: Solid PE (Polyethyline)
- Outer Diameter: 0.110 inches nominal
- Velocity of Propagation: 66%
- Operating Temperature: -40C to +85C
- Loss @ 50 MHz: 5.80 dB per 100 ft
- Loss @ 100 MHz: 8.40 dB per 100 ft
- Loss @ 200 MHz: 12.50 dB per 100 ft
- Loss @ 400 MHz: 19.00 dB per 100 ft
- Loss @ 1000 MHz: 34.00 dB per 100 ft
- RoHS compliant
